# January 22nd, 2020

Taskman currently resides in a private GitHub repository, but I wanted to share a bit about what it's capable of. This post is largely taken from Taskman's README.md.

# Taskman Summary

Dashboard

Taskman is a platform for running tasks; including functionality for monitoring their status, progress, and results.

There are two primary task abstractions:

Task

Tasks are essentially functions with metadata attached. They accept TaskArgs (arguments) and produce a TaskResult (a result).

Task arguments and results are highly dependent on the intent of the task itself. At a minimum they provide:

TaskArgs:
```
[String] description - a description of the task
[String] bearerToken - authorized JWT token at time of task submission
[String] cronPattern - quartz cron expression describing the interval at which this task is to run
```
TaskResult:
```
[String] exception - the stacktrace if this task threw an exception
```
Everything else required should reside in an implementation of Task, TaskArgs, or TaskResult.

BatchTask

BatchTasks are essentially a list of Tasks to be executed sequentially on the same thread or asynchronously on separate threads (potentially separate instances of taskman-backend entirely). They accept BatchTaskArgs (TaskArgs++) and produce a BatchTaskResult (TaskResult++).

BatchTaskArgs and BatchTaskResult both inherit from TaskArgs and TaskResult respectively. In addition to their parent classes' fields they also possess:

BatchTaskArgs:

[long]    delayMillis - how long the executing thread should sleep inbetween child task executions in milliseconds
[boolean] stopOnError - whether or not the batch task should terminate in the event of a child task error (only applicable to non-async batches)
[boolean] isAsync     - whether or not to execute each child task on the same thread as the batch task or spawn a new thread per task

BatchTaskResult:

[int]               totalTasks     - the total number of tasks in the batch
[int]               currentTask    - the task number that the batch task is currently executing
[int]               canceledOnTask - the task number that the batch task was canceled on
[List<UUID>]        errors         - a list of ids for tasks which terminated in error
[List<UUID>]        successes      - a list of ids for tasks which completed successfully
[List<UUID>]        paused         - a list of ids for tasks which are currently paused
[Map<UUID, String>] exceptions     - a map of ids to stacktraces (for tasks which threw exceptions)

Task Details

# Task Statuses

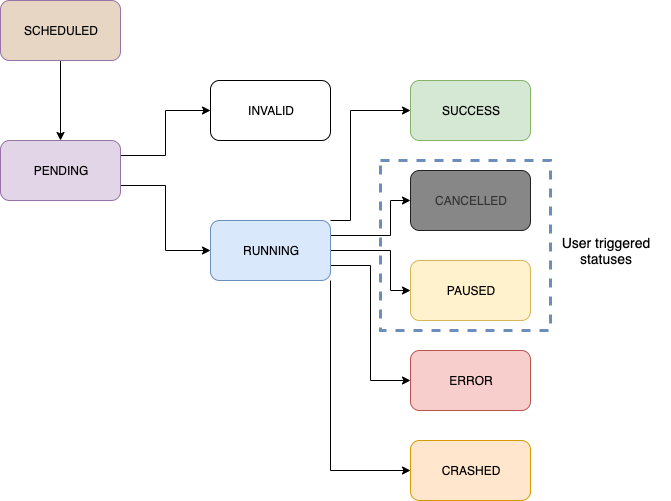

Task Statuses

Statuses considered complete
- SUCCESS

  Indicates that the task was successful. Successful tasks can be rerun or deleted.
- ERROR

  Indicates that the task encountered an unrecoverable error. Tasks in error can be rerun or deleted.
- CANCELED

  Indicates that task execution was canceled manually. Canceled task can be rerun or deleted.
- INVALID

  Indicates that the task could not execute due to its arguments failing validation. Invalid tasks can be deleted.
- CRASHED

  Indicates that the thread executing the task crashed before normal completion. Crashed tasks can be resumed, rerun, or deleted.
Other statuses
- SCHEDULED

  Scheduled tasks are templates created when a task is submitted with a cronPattern argument. The scheduled template is copied and submitted for execution when its cron triggers.
- PENDING

  Indicates that the task is waiting for an available thread on which to run. Pending tasks can be paused or canceled.
- RUNNING

  Indicates that the task is currently running on a thread. Running tasks can be paused or canceled.
- PAUSED

  Indicates that task execution will be paused as soon as the task acknowledges its paused status. Paused tasks can be resumed, or canceled.

# Scheduling

Task Statuses

Any Task or BatchTask can be scheduled to run according to a Quartz cron expression (This format is slightly different than traditional Cron, so I recommend looking at the documentation).

Scheduled tasks are automatically loaded and scheduled upon application start.

Scheduled tasks will not be run if they are already running. In the event that an application error results in a scheduled task which is erroneously active, it can be deactivated via the UI. Deactivation will ensure that the task is run at its next scheduled interval.

When a task is scheduled, a message is sent to all instances; informing them to follow suit and schedule that task. This ensures, should the initial instance go offline, that the task is still run according to its schedule.

Scheduled tasks can be disabled if execution is to be temporarily disabled. Currently, if a scheduled task is deleted then all tasks run according to that schedule will also be deleted.

# Task Reaper

When Taskman starts, it schedules a task reaper thread to run every 5 minutes. Any running task which has not been updated in the last 5 minutes will be transitioned to a crashed status when the task reaper runs. Crashed tasks can occur if a taskman-backend instance currently running task(s) is shutdown or terminates irregularly. Crashed tasks can be resumed or reran via the UI.

# Scaling

Taskman has been designed with horizontal scaling in mind. It uses RabbitMQ as a message broker in order to distribute tasks across instances. All task state is stored in the taskman application database and concurrent writes / reads to shared resources are controlled via database locks.

Time spent waiting on a database lock is expected to be nearly zero unless the executing BatchTask contains many asynchronous Tasks with near-equal runtimes.

Vertical scale is a function of how many executor threads a taskman-backend instance is configured to use. The application property, taskman.executorThreads, represents the total number of tasks that can execute concurrently on the instance. If all instances are at capacity at the time of task execution, then the task message is delayed taskman.noThreadsMessageDelaySeconds seconds before being republished to the task exchange.

# Metrics and Monitoring

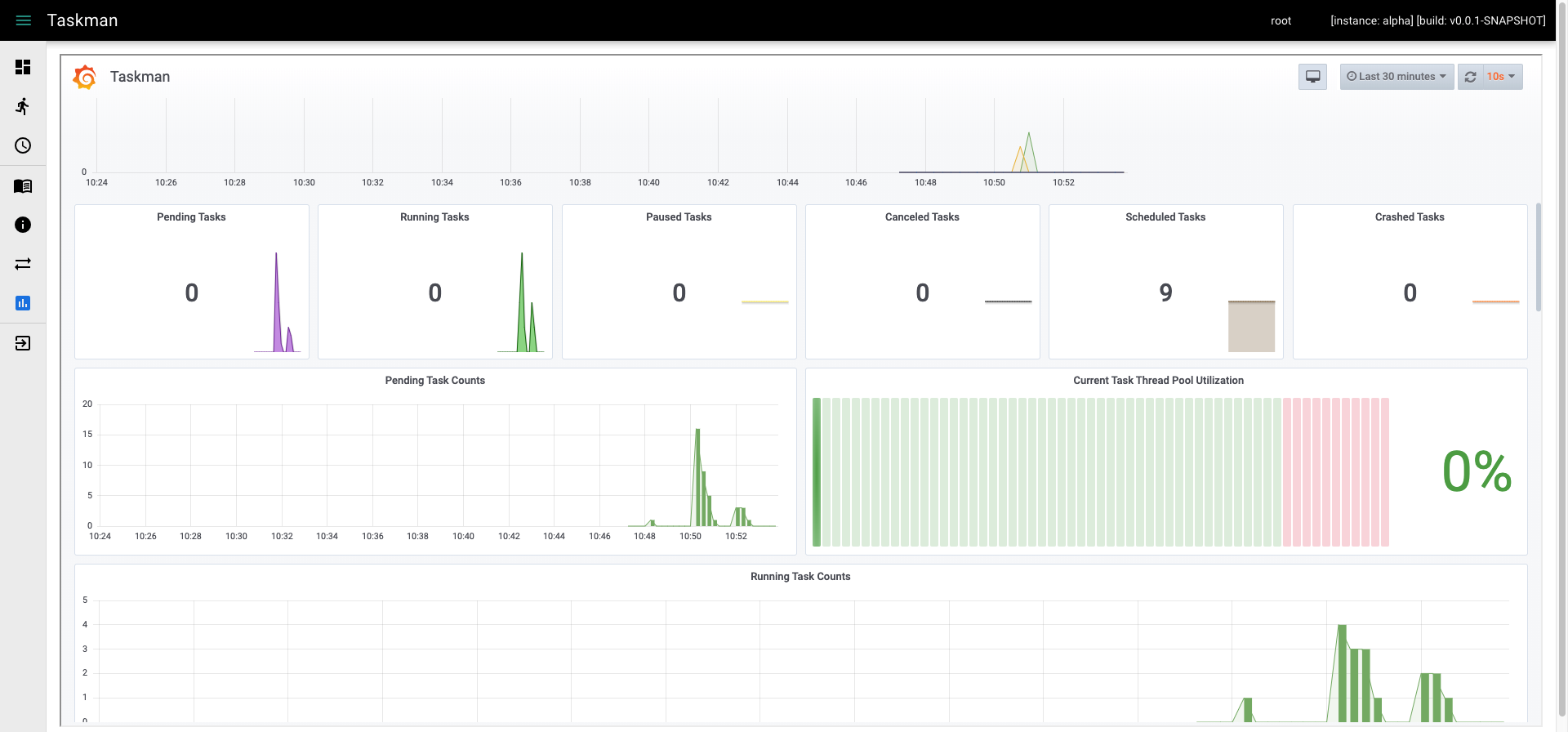

Grafana

Spring Boot Admin works well for high level application metrics (non-persistent), logging configuration, et cetera; but Prometheus and Grafana provide a much more extensive platform for dashboarding arbitrary task metrics and aggregating data across instances.

Spring Boot auto-configures Micrometer, an application metrics façade that supports numerous monitoring systems.

Taskman uses Prometheus and Grafana in order to provide a customizable suite of monitoring dashboards. These dashboards, as well as their data, are persistent.

A Prometheus datasource is provisioned automatically; it can be configured by editing /taskman/backend/grafana/provisioning/datasources/all.yml.

Dashboards can be created / edited via the Grafana web interface, exported to json, and put in taskman/backend/grafana/dashboards. Dashboards found in this directory will be automatically provisioned.

There are currently 3 dashboards provided:

Taskman

Custom application metrics implemented specifically for Taskman

Taskman Actuator

Metrics exposed by Spring Boot Actuator

RabbitMQ

RabbitMQ metrics sent directly to Prometheus

# Logging and Traceability

Task execution is easily traceable across threads / instances because each log statement is automatically enriched with the executing task's id.

Note that in the below taskman-backend log excerpt, either the task id or the BreadcrumbId HTTP header is present - the header defaulting to HTTP- plus a random UUID in this example.

2019-11-01 18:01:28,814 [8080-exec-10] INFO  c.e.taskman.service.ScheduledTaskService [HTTP-022ab2b0-133e-4963-8fde-fbe448f402fa] - Scheduled GoogleBatchTask (d6563c4b-5c6a-46ff-88ac-8871c6e8b169) to run according to cron pattern: 0 0/2 * * * ?
2019-11-01 18:02:00,066 [ontainer#1-1] INFO       c.e.t.service.RabbitListenerService [d6563c4b-5c6a-46ff-88ac-8871c6e8b169] - Got google batch task: d6563c4b-5c6a-46ff-88ac-8871c6e8b169
2019-11-01 18:02:00,246 [l-3-thread-1] INFO  c.e.t.service.callable.BatchTaskCallable [62d628c1-7125-45b8-94e5-49fcb46e907c] - Batch task GoogleBatchTask [62d628c1-7125-45b8-94e5-49fcb46e907c] is running...
2019-11-01 18:02:00,450 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [858f1a28-4715-40f5-8099-e9b1e7a25ce9] - Task GoogleTask [858f1a28-4715-40f5-8099-e9b1e7a25ce9] is running...
2019-11-01 18:02:01,942 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [858f1a28-4715-40f5-8099-e9b1e7a25ce9] - Task GoogleTask [858f1a28-4715-40f5-8099-e9b1e7a25ce9] was successful
2019-11-01 18:02:12,028 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [939f0a49-0c2f-497b-96bc-98c1e24ab18c] - Task GoogleTask [939f0a49-0c2f-497b-96bc-98c1e24ab18c] is running...
2019-11-01 18:02:12,999 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [939f0a49-0c2f-497b-96bc-98c1e24ab18c] - Task GoogleTask [939f0a49-0c2f-497b-96bc-98c1e24ab18c] was successful
2019-11-01 18:02:23,063 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [a84b376e-dd51-4ad3-99f5-99d587b8fb56] - Task GoogleTask [a84b376e-dd51-4ad3-99f5-99d587b8fb56] is running...
2019-11-01 18:02:25,503 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [a84b376e-dd51-4ad3-99f5-99d587b8fb56] - Task GoogleTask [a84b376e-dd51-4ad3-99f5-99d587b8fb56] was successful
2019-11-01 18:02:35,566 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [49b735eb-3184-421d-a55c-75e6815db0d9] - Task GoogleTask [49b735eb-3184-421d-a55c-75e6815db0d9] is running...
2019-11-01 18:02:37,925 [l-3-thread-1] INFO       c.e.t.service.callable.TaskCallable [49b735eb-3184-421d-a55c-75e6815db0d9] - Task GoogleTask [49b735eb-3184-421d-a55c-75e6815db0d9] was successful
2019-11-01 18:02:47,943 [l-3-thread-1] INFO  c.e.t.service.callable.BatchTaskCallable [62d628c1-7125-45b8-94e5-49fcb46e907c] - Batch task GoogleBatchTask [62d628c1-7125-45b8-94e5-49fcb46e907c] was successful

# Security

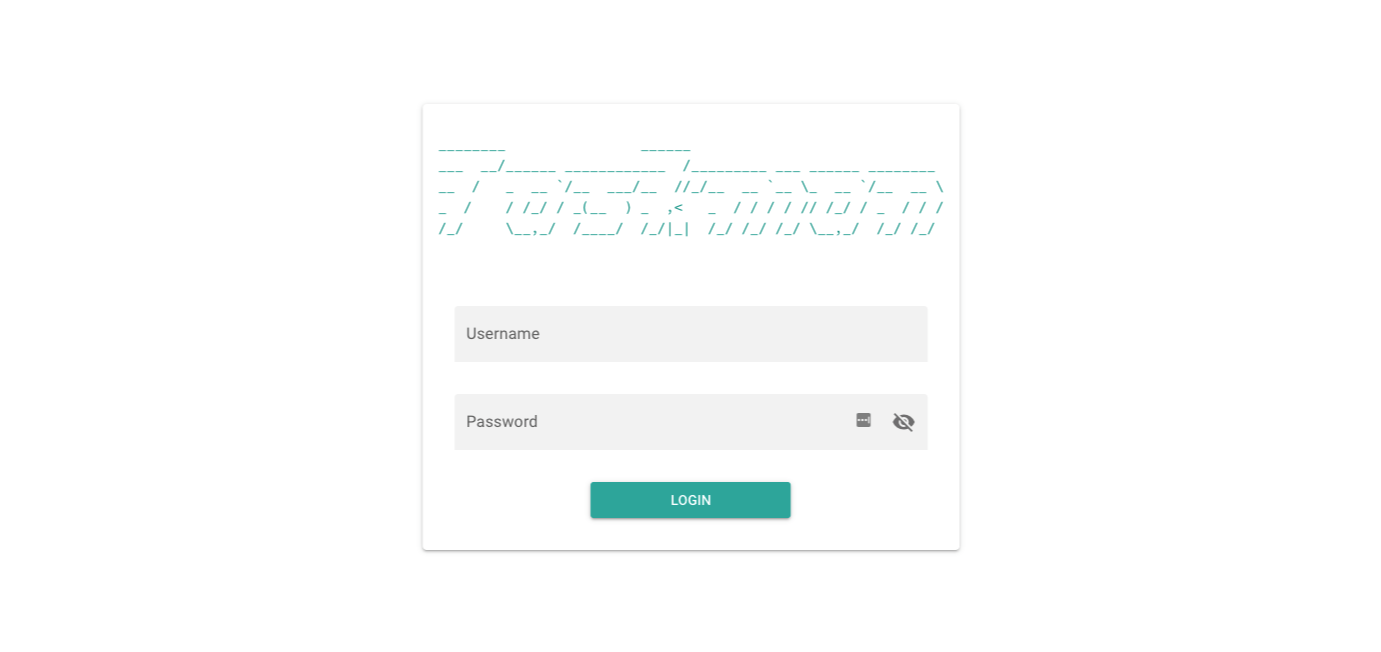

Taskman Login

Taskman uses JWT in order to restrict access by translating scopes into authorities and vice versa. Tokens are signed with the RS256 algorithm.

All paths under /api require athentication with the exception of:

the token endpoint (/api/auth/login)
the refresh token endpoint (/api/auth/refresh)

Spring Boot actuator endpoints (/actuator) are available on a different port (8083) to allow them to be conditionally exposed via network configuration.

Swagger is exposed at /swagger-ui.html. It is currently not secured, but interacting with the API via the interface requires a valid JWT token.

taskman-admin is configured to require a username and password for accessing the Spring Boot Admin interface. It does not currently have the necessary configuration to act as a resource server supporting taskman-backend's JWT tokens. Therefore, SSO between the two is not currently enabled, but should be possible to implement in the future.

Grafana is configured to require a username and password for accessing the metrics dashboard. Grafana stores users separate from Taskman; it provides its own set of user management features.

The RabbitMQ Management interface also requires a username and password and does not rely on taskman-backend for authentication.

All Taskman user passwords are encrypted using the BCrypt strong hashing function.

# JWT Flow / Description

Given a valid username and password; by default - an access token is issued with a time to live of 5 minutes as well a refresh token which is valid for 60 minutes.

# Refresh (/api/auth/refresh)

Given a valid refresh token; a new access token is issued (effectively extending the life of the token for another 5 minutes).

# Logout

One does not simply log out with JWT. The token is valid for as long as it was issued for. If a token must be revoked for some reason then see below about invalidating the refresh token's JTI.

# Invalidate JTI

There is currently no API endpoint exposed for invalidating tokens, but they can be manually revoked by setting is_valid to false in the taskman application database's REFRESH_TOKEN table for a given username. The access token will remain valid until the next refresh is attempted; at which time, the refresh request will be rejected due to an invalid JTI.

# Decoded Access Token

{
  "sub": "root",
  "scopes": {
    "taskman": [
      "root",
      "admin",
      "read",
      "write",
      "delete"
    ]
  },
  "iss": "taskman",
  "iat": 1571407296,
  "exp": 1571407596
}

Scopes are translated into GrantedAuthorities of the same name in taskman-backend. i.e.

# UserContext returned via /api/auth/whoami (Spring Security principal)

{
  "username" : "root",
  "authorities" : {
    "taskman" : [ {
      "authority" : "root"
    }, {
      "authority" : "admin"
    }, {
      "authority" : "read"
    }, {
      "authority" : "write"
    }, {
      "authority" : "delete"
    } ]
  }
}

# Decoded Refresh Token

{
  "sub": "root",
  "scopes": {
    "taskman": [
      "ROLE_REFRESH_TOKEN"
    ]
  },
  "iss": "taskman",
  "jti": "feb2ec8e-2b33-4a5a-8a54-60eecc9a5566",
  "iat": 1571407296,
  "exp": 1571410896
}

# Scopes per Application

Scopes is implemented as a map rather than a list; which means that Taskman is capable of issuing / validating access tokens which are supported by multiple applications (each with different scopes). Making it capable of providing single sign-on for a suite of applications.

# Generate new public / private keys for signing JWT tokens

Generate a 2048-bit RSA private key

openssl genrsa -out private_key.pem 2048

Convert the private key to PKCS#8 format

openssl pkcs8 -topk8 -inform PEM -outform DER -in private_key.pem -out private_key.der -nocrypt

Output the private key's public key portion in DER format

openssl rsa -in private_key.pem -pubout -outform DER -out public_key.der

Copy private_key.der and public_key.der into taskman-backend's resources folder

# Local `User`s

These taskman-backend Users are created upon application start. They are intended for development, not production.

{
  "username": "root",
  "password": "root",
  "roleInfo": "root access"
},
{
  "username": "demo",
  "password": "demo",
  "roleInfo": read only access"
}

# Development

# Development Dependencies

Java SE Development Kit 8
Maven
Yarn
PostgreSQL
RabbitMQ
Docker Compose

# Existing Tasks

GoogleTask
- Search google using the provided query and collect the top links returned.
MongoTask
- Connect to a MongoDB source and ETL a specified collection into PostgreSQL.
MongoSyncTask
- Run a batch of MongoTasks to perform ETL on all known collections.
RestTask
- Make an HTTP request with optional pre (request) / post (response) processing hooks.

# Implementing a New Task

Currently, MongoTask is the most robust Task that Taskman has to offer. I recommend looking at these classes as an example of what is required to implement a new Task and BatchTask:

MongoSyncTask is an example of a specialized implementation of MongoBatchTask; although only Task and BatchTask implementations are required of a new Task.

[Repositories - provide database access]
./com/ethanaa/taskman/repository/mongo/MongoTaskRepository.java
./com/ethanaa/taskman/repository/mongo/MongoTaskResultRepository.java
./com/ethanaa/taskman/repository/mongo/MongoBatchTaskRepository.java
./com/ethanaa/taskman/repository/mongo/MongoBatchTaskResultRepository.java

[Models - describe the task]
./com/ethanaa/taskman/model/mongo/MongoTask.java
./com/ethanaa/taskman/model/mongo/MongoTaskArgs.java
./com/ethanaa/taskman/model/mongo/MongoTaskResult.java
./com/ethanaa/taskman/model/mongo/MongoTaskCallable.java
./com/ethanaa/taskman/model/mongo/MongoBatchTask.java
./com/ethanaa/taskman/model/mongo/MongoBatchTaskArgs.java
./com/ethanaa/taskman/model/mongo/MongoBatchTaskResult.java
./com/ethanaa/taskman/model/mongo/MongoBatchTaskCallable.java
./com/ethanaa/taskman/model/mongo/MongoSyncTask.java
./com/ethanaa/taskman/model/mongo/MongoSyncTaskArgs.java

[Services - handle task logic]
./com/ethanaa/taskman/service/MongoTaskService.java

[Controllers - expose API endpoints]
./com/ethanaa/taskman/controller/MongoTaskController.java
./com/ethanaa/taskman/controller/RootTaskController.java [see: getTaskNames()]

[Assemblers - convert models to resources]
./com/ethanaa/taskman/controller/assembler/mongo/MongoTaskAssembler.java
./com/ethanaa/taskman/controller/assembler/mongo/MongoBatchTaskAssembler.java

[Resources - used for API interaction]
./com/ethanaa/taskman/controller/resource/mongo/MongoTaskResource.java
./com/ethanaa/taskman/controller/resource/mongo/MongoBatchTaskResource.java

[RabbitMQ related - used for creating queues and listening for tasks]
./com/ethanaa/taskman/config/RabbitMQConfig.java
./com/ethanaa/taskman/service/RabbitListenerService.java

# Backend

Taskman uses Spring Boot for its server-side framework. Noteworthy libraries include:

spring-data-jpa  - repositories backed by postgresql databases provide the persistence layer
spring-hateoas   - links are provided on api responses so that the api is navigable
spring-websocket - websockets are used in order to update the frontend without requiring a page refresh

# Environment

taskman-backend requires that the following environment variables are present at runtime:

PSQL_HOST        - taskman application database host (default: localhost)
PSQL_USER        - taskman application database username (default: taskman)
PSQL_PASS        - taskman application database password (default: taskman)

PSQL_EXPORT_HOST - mongo export database host (also uses $PSQL_USER and $PSQL_PASS) (default: localhost)

RABBIT_HOST      - rabbitmq host (default: localhost)
RABBIT_PORT      - rabbitmq port (default: 5672)
RABBIT_USER      - rabbitmq user (default: rabbitmq)
RABBIT_PASS      - rabbitmq pass (default: rabbitmq)

These are specifically required because a connection to each database as well as RabbitMQ, is established on startup.

Currently, the backend expects to find a database named taskman at $PSQL_HOST and a database named dump at $PSQL_EXPORT_HOST.

If you are running all dependencies of taskman-backend with Docker Compose then taskman-backend should start successfully simply by changing the active profile to local. This can be done with the program argument --spring.profiles.active=local.

# Migrations

Database migrations are automatically applied at runtime by Flyway.

Migrations are plain .sql files and can be found at taskman/backend/src/main/resources/db.

# Build

taskman-backend uses Maven in order to build. The produced artifact includes a build of taskman-frontend (copies static files from frontend/dist/spa) as well as an embedded web server.

cd backend
mvn clean package

1
2

Tests can be skipped by supplying the argument -DskipTests=true to mvn clean package. Currently all tests are unit tests with no external dependencies; as such, they should be runnable under any circumstances.

If taskman-frontend has not yet been built, or you want to build everything at once (frontend, backend, and admin) then run Maven from the root taskman directory.

cd taskman
mvn clean package

1
2

# Run

cd backend/target
java -jar taskman-backend-$VERSION.jar

1
2

After required environment variables are present, taskman should be available in your browser at http://localhost:8080.

# Frontend

Taskman uses Vue.js with the Quasar Framework to render its web-based front end (SPA).

# Build

taskman-frontend uses Yarn in order to build as well as execute the serving of the auto-rebuilding development environment.

cd frontend
yarn
yarn build

or

yarn dev

1
2
3
4
5
6
7

If running the development server; then access taskman on port 8081 in order to take advantage of the automatic rebuilds. Requests will be automatically proxied through to taskman-backend running on port 8080.

# Admin

Taskman registers as a Spring Boot Admin client. There is a taskman-admin artifact provided which acts as the Spring Boot Admin server.

# Build

taskman-admin uses Maven in order to build. The produced artifact includes an embedded web server.

cd admin
mvn clean package

1
2

# Run

cd admin/target
java -jar taskman-admin-$VERSION.jar

1
2

The Spring Boot Admin server should be available in your browser at http://localhost:8082.

# Docker Compose

Docker Compose can be used to stand up an entire environment including taskman-backend, taskman-admin, RabbitMQ, Prometheus, Grafana, and both taskman and dump PostgreSQL databases.

Edit taskman/backend/prometheus/prometheus.yml: replace host.docker.internal with the name of service. E.g. backend

# Build

docker-compose build

# Run

docker-compose up

Service Endpoints:

taskman-backend: http://localhost:8080 (user: root, pass: root)
taskman-backend api: http://localhost:8080/api
taskman-backend swagger: http://localhost:8080/swagger-ui.html
taskman-backend actuator: http://localhost:8083/actuator
taskman-admin: http://localhost:8082 (user: admin, pass: admin)
postgres_taskman: postgresql://localhost:9090
postgres_mongo_export: postgresql://localhost:9091
rabbitmq: http://localhost:5672
rabbitmq management: http://localhost:15672 (user: rabbitmq, pass: rabbitmq)
rabbitmq metrics: http://localhost:15692/metrics
prometheus: http://localhost:3001
grafana: http://localhost:3000 (user: grafana, pass: grafana)

# Run Just Grafana (or a subset of services)

Edit taskman/backend/prometheus/prometheus.yml: replace the service names with host.docker.internal, localhost, etc.

docker-compose up grafana

Grafana depends on Prometheus, so it should automatically start that too.

The same process should work for any other services which you do not want to install locally; like RabbitMQ or PostgreSQL.

# Volumes

# List

docker volume ls | grep taskman

local               taskman_admin_tmp
local               taskman_backend_logs
local               taskman_backend_tmp
local               taskman_grafana_data
local               taskman_grafana_logs
local               taskman_postgres_mongo_export_data
local               taskman_postgres_taskman_data
local               taskman_prometheus_data
local               taskman_rabbitmq_data

1
2
3
4
5
6
7
8
9
10
11

# Delete

docker volume rm taskman_prometheus_data

# January 22nd, 2020

# Taskman Summary

# Task Statuses

# Scheduling

# Task Reaper

# Scaling

# Metrics and Monitoring

# Logging and Traceability

# Security

# JWT Flow / Description

# Login (/api/auth/login)

# Refresh (/api/auth/refresh)

# Logout

# Invalidate JTI

# Decoded Access Token

# UserContext returned via /api/auth/whoami (Spring Security principal)

# Decoded Refresh Token

# Scopes per Application

# Generate new public / private keys for signing JWT tokens

# Local Users

# Development

# Development Dependencies

# Existing Tasks

# Implementing a New Task

# Backend

# Environment

# Migrations

# Build

# Run

# Frontend

# Build

# Admin

# Build

# Run

# Docker Compose

# Build

# Run

# Run Just Grafana (or a subset of services)

# Volumes

# List

# Delete

# Local `User`s
